Architecture

Table of Contents

1. Overview
2. Design Considerations
3. Extension Points

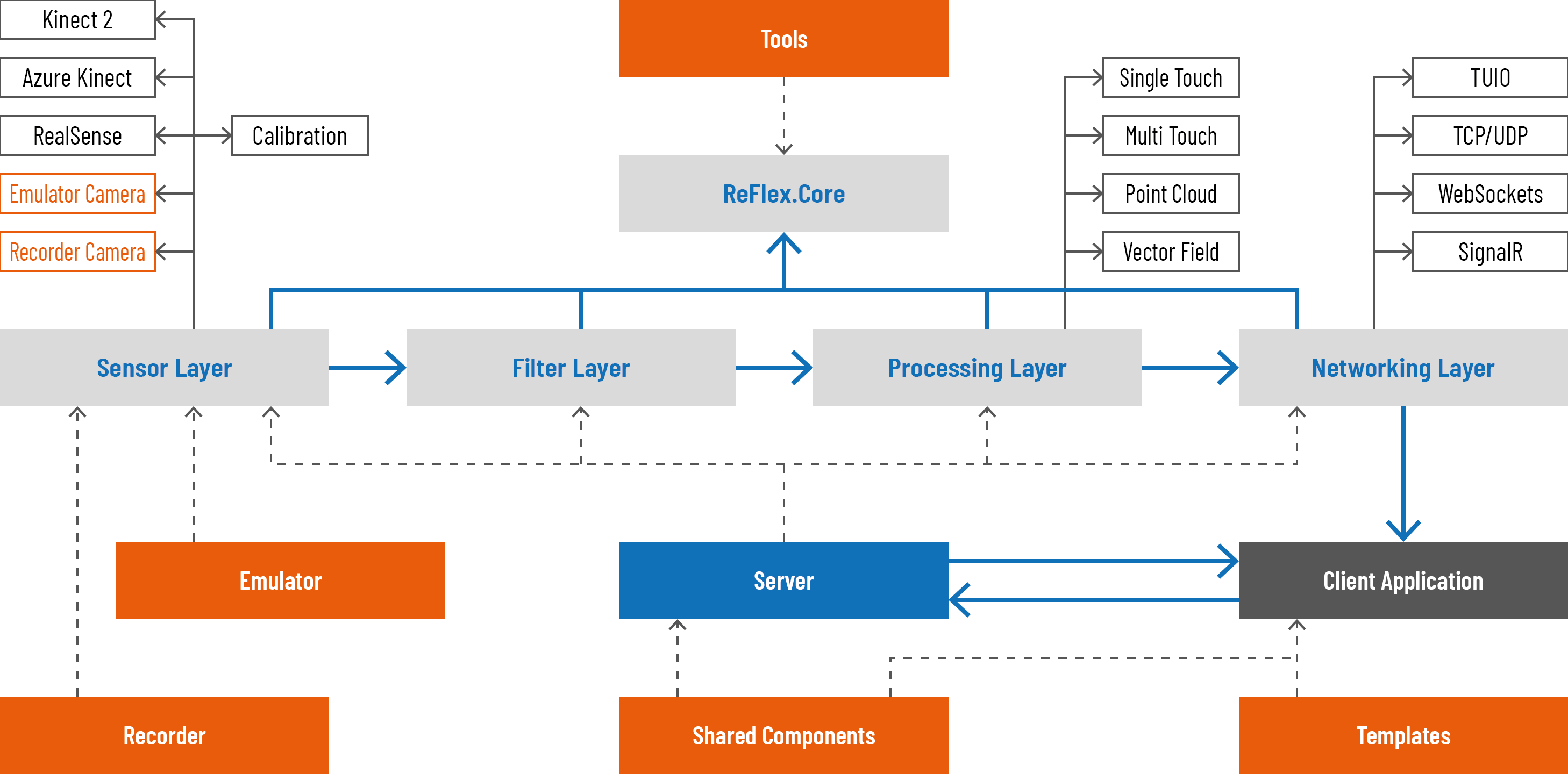

Overview

ReFlex.Core - Library

.NET Library to handle

• Calibration for mapping sensor-coordinates (distance from sensor) to device space (projected pixel coordinates + depth)
• Tracking using selected Depth Sensor (communicating with sensor layer)
• Processing depth images (Filtering) and extracting Interactions (Interactivity)
• Broadcast through Networking component

Clients

• Client applications consume events from server via websockets / tcp / TUIO
• Configuration of Server via TrackingServer UI or automated via REST API
• additional depth image streaming utilizing websockets

⬆ back to top

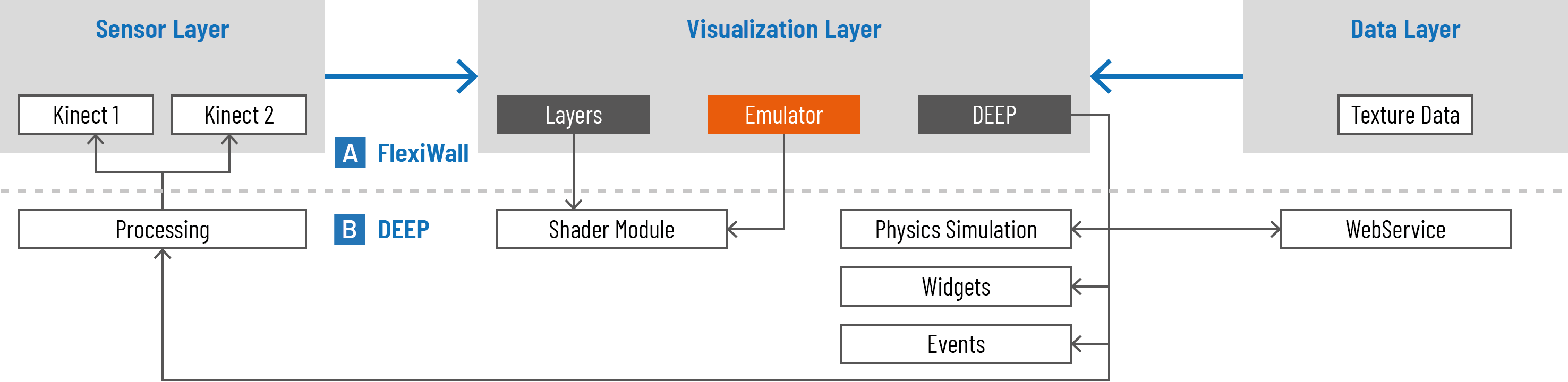

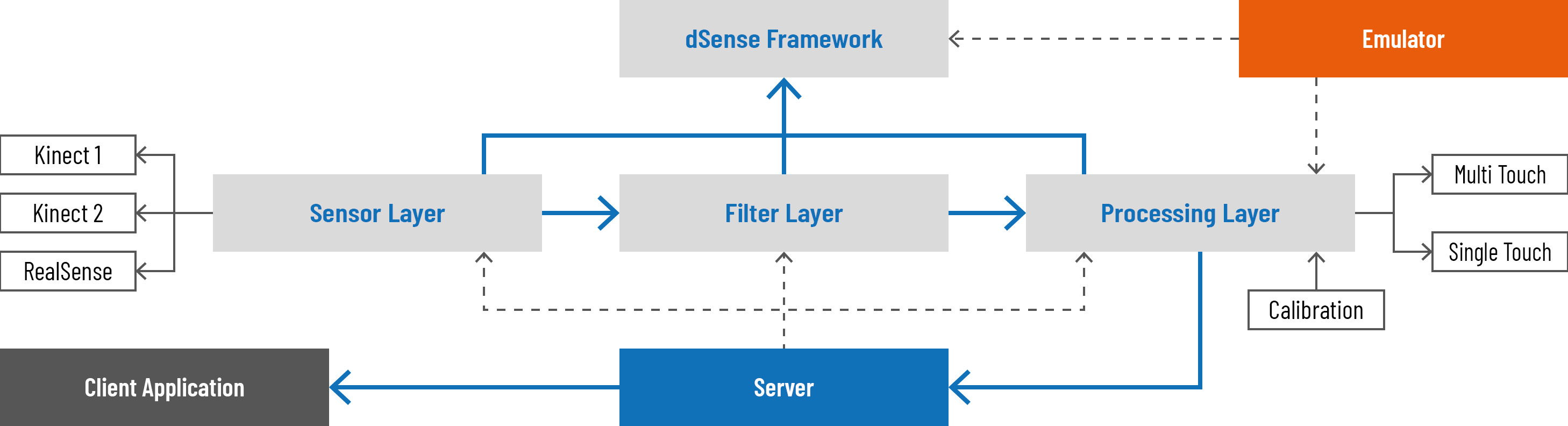

Design Considerations

• Client-Server architecture: ability run tracking/processing (server) and visualization (client) on different hardware
• Sensor Layer: Common interface for depth sensing devices (hardware and software-emulated)
• Core Framework: Processing Pipeline and common types, platform independent

⬆ back to top

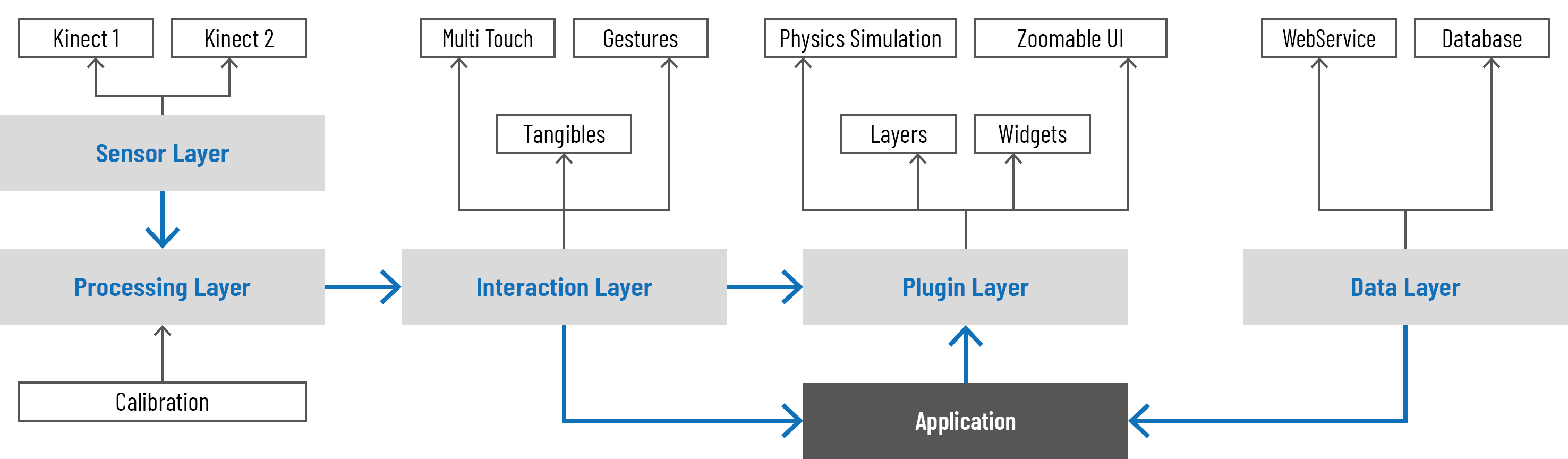

Extension Points

• gRPC - using micro services to extend functionality
• Common sensor interface - easy to add additional sensors
• Interaction Observer - option to implement custom Point cloud processing algorithm (cloud-based, utilizing machine-learning, …)
